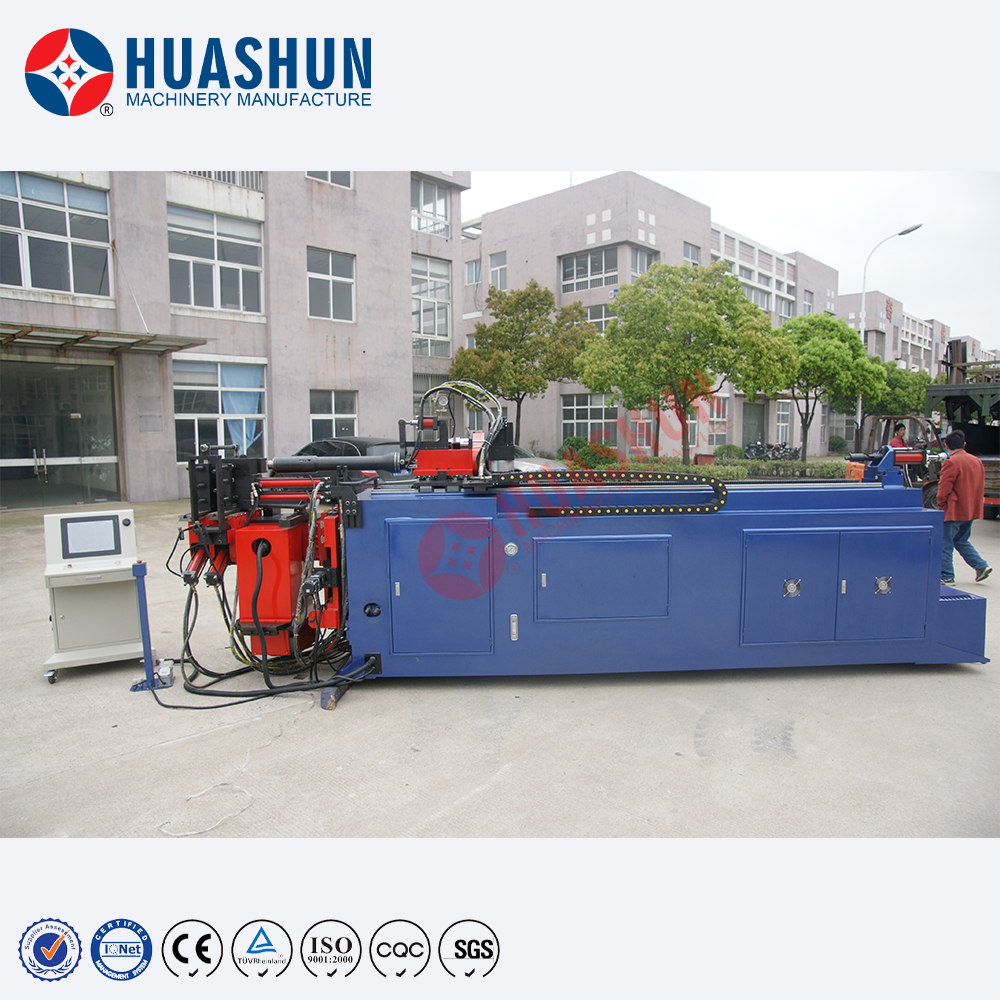

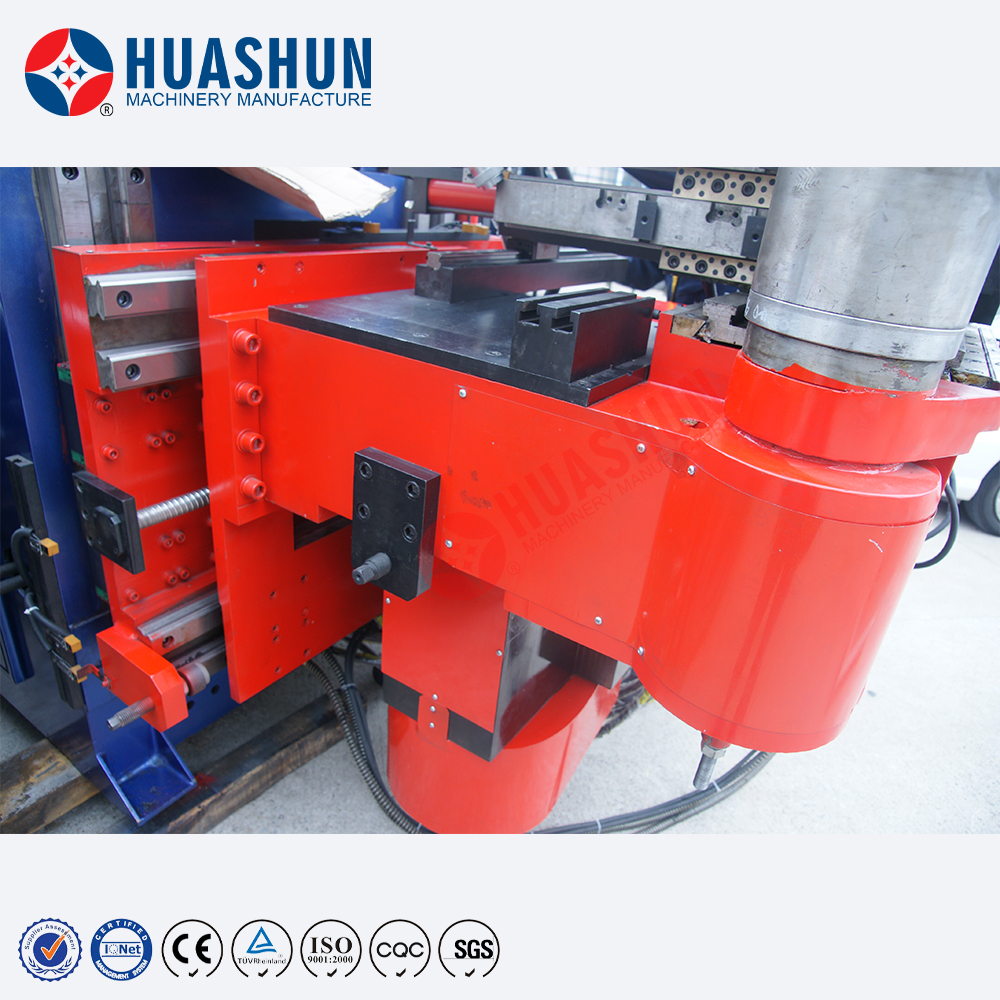

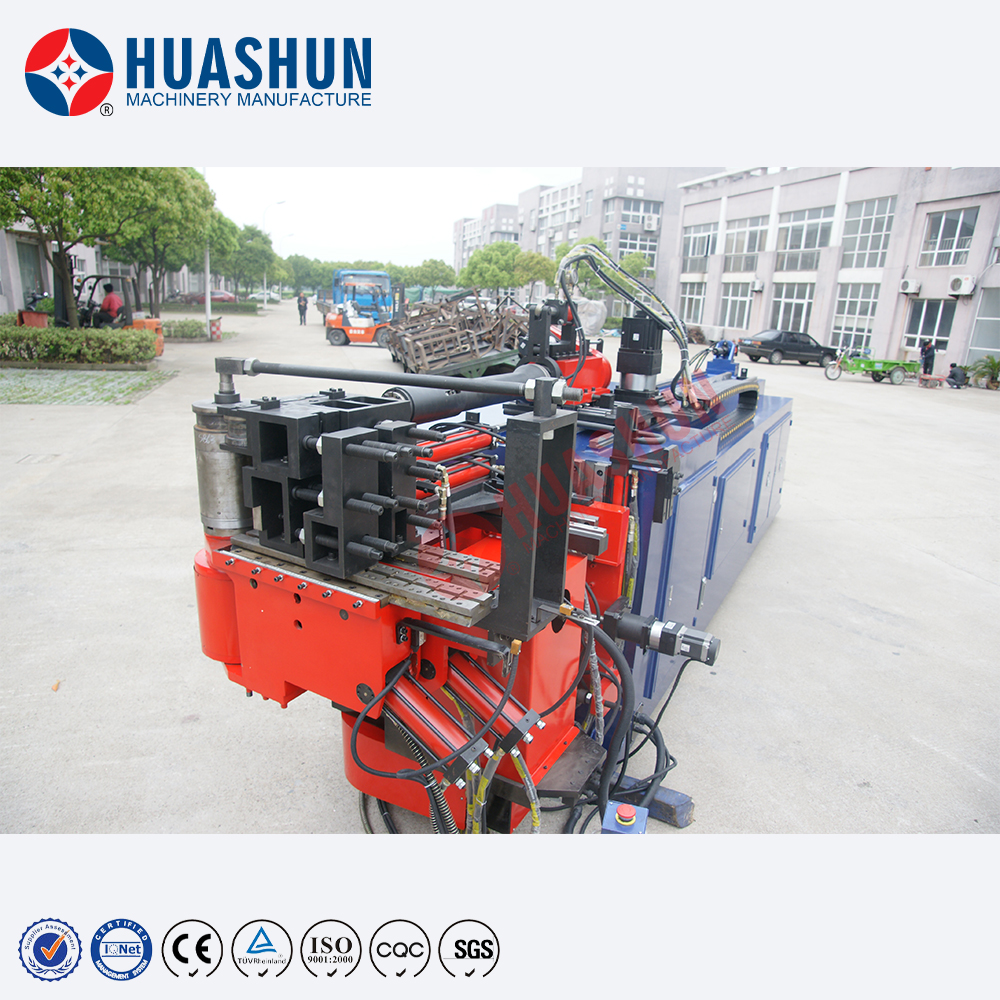

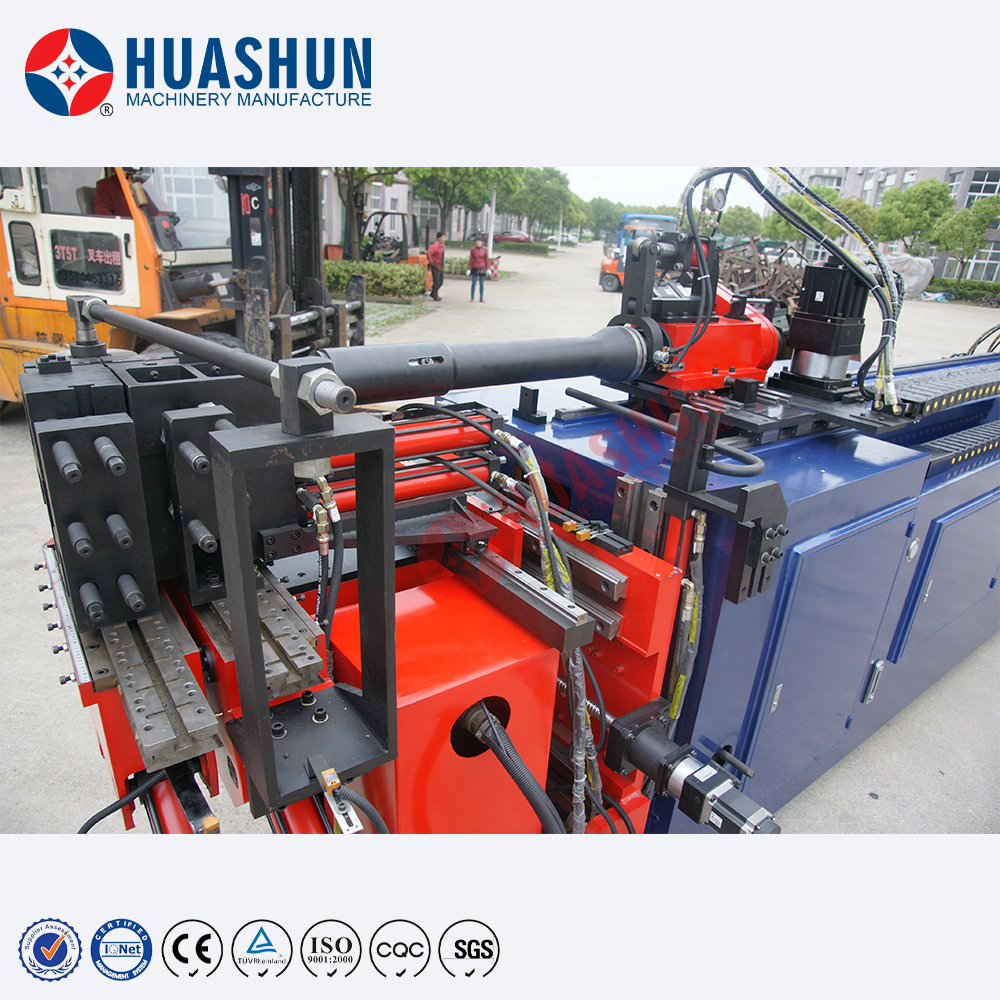

CNC Pipe Bending Machine

SB-63CNC-5A-3ST

Inquire Now

Tags :

Standard

--Industrial Computer offers easy access to auto and manual operating modes.

--System diagnostics and multiple language capability.

--Left and Right bending direction.

--Fully hydraulic clamping on clamp die and pressure die.

--Direct acting hydraulic pressure die with adjustable speed valve.

--Maximum 10000 sets of program storage,20 or more bends for each program.

--With Independent programmable speeds Y, B, and C axes.

--Programmable material spring back settings for each bend angle.

--Automatic mandrel/machine lubrication.

--Automatic release of tube prior to final bend.

--Bending Axis-Driven by Servo Motor,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor,Left to Right Axis-Driven by Servo Motor,Up to Down Axis-Driven by Servo Motor.

--Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.

--Foot Pedal Cycle start.

--With Air Cooling System.

--One set of Tooling for Draw Bending.

--Wiper die Bracket.

--Operation and Maintenance Manual.

--Tool Box with Adjusted Tools.

--Electric: As required (3 phase 220V or 380V or 415V...)

Optional

--Anticipate Mandrel Extraction

--Machine effective length over mandrel

--Safety Mat

Name		Unit	Data
Max Draw Bending Capacity	Mild steel round tube	mm	￠63*4
	Stainless Steel	mm	￠63*2
	Light alloy annealed round tube	mm	￠63*5
	Mild steel square tube	mm	50502.5
	Mild steel rectangular tube	mm	50452.5
	Mild steel round solid bar	mm	￠25
	Mild steel square solid bar	mm	18*18
Max Bending Radius(Draw Bending)		mm	R300
Max Bending Radius(Draw Bending)		mm	Can customized as per customer’s requirement
Min Bending Radius(Draw Bending)		mm	R30
Draw Bending Radius Layer Difference		mm	100
Rolling Radius Range		mm	6D-∞
Through Effective Distance Over Mandrel		mm	4200
Through Effective Distance Over Mandrel		mm	Can customized as per customer’s requirement
Max. One Time Feeding Length		mm	3000
Max. One Time Feeding Length		mm	Can customized as per customer’s requirement
Max Bending Degree		°	190
Bending Unit		pieces	32
